Description

About this item

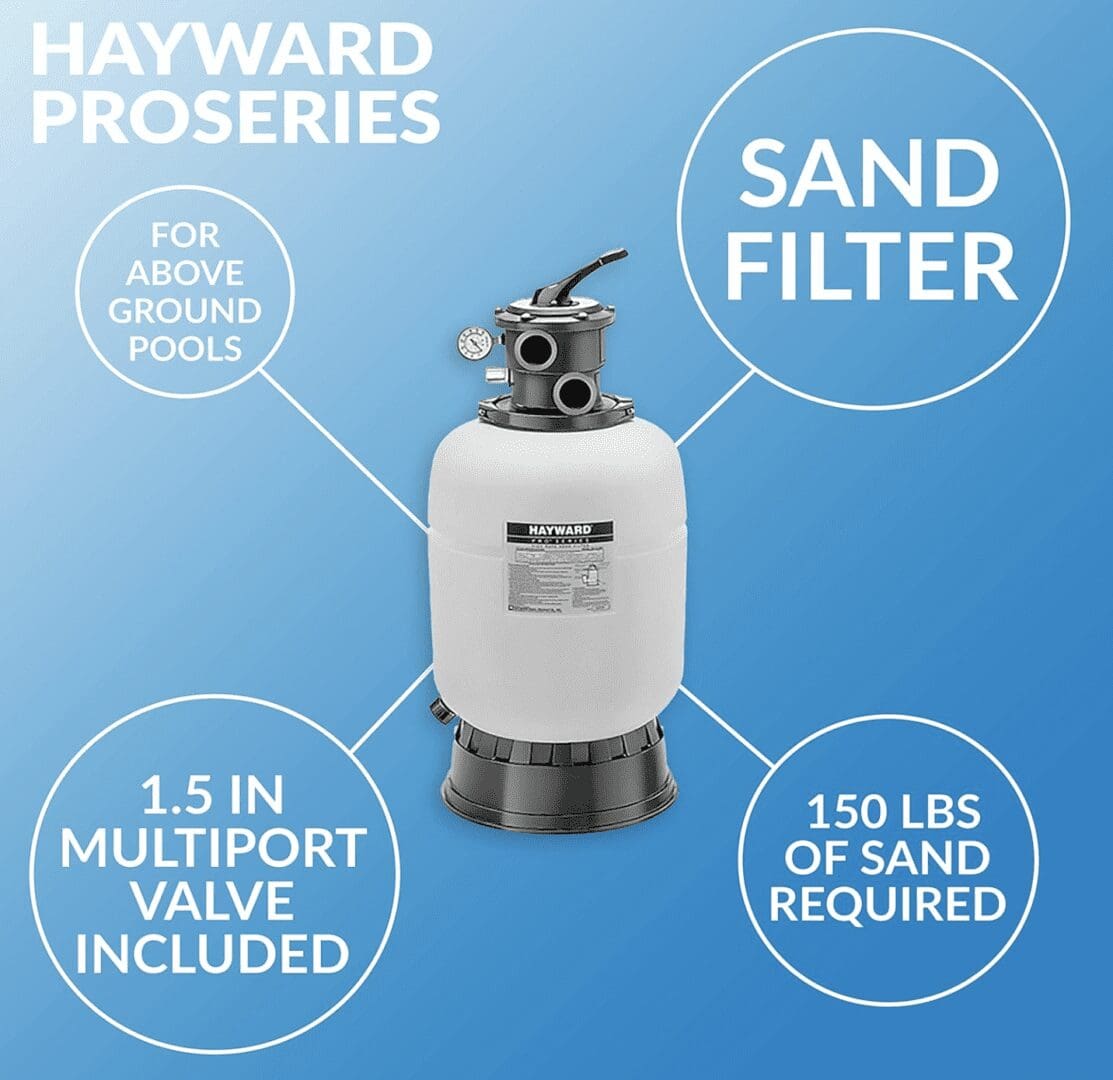

• INCLUDES: The Hayward ProSeries 18 In. Above-Ground Pool Filter System includes an 20 in. polymeric tank, a 7-position filter control valve, and a 1.5 HP PowerFlo Matrix pool pump
• MAXIMUM FLOW: 7-position VariFlo valve provides maximum flow at lower pressure drop
• RAPID WINTERIZING: Large pressure sand/water drain is always ready for quick winterizing or servicing
• MAXIMUM FILTRATION: Integral top diffuser ensures even distribution of water over the entire sand bed for optimal use of filtration area

From the manufacturer

About Hayward

For over 80-years, Hayward has been helping pool owners enjoy the pleasures of pool ownership by manufacturing cutting edge, technologically advanced pool equipment worldwide. Our goal is that at the end of the day, your only concern is to turn your equipment on and off.

Hayward ProSeries System

• 7-position VariFlo valve provides maximum flow at lower pressure drop
• Large pressure sand/water drain for rapid winterizing or servicing
• Integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area
• Pump-to-filter union connection provides simple installation and winterization

Maximize Your Filtration Ability

Pro-Series filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability. They utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water. A broad selection of filter sizes, pumps, and accessories allows you to choose the system that best suits your above-ground pool needs.

ProSeries Specifications:

– Filter Type: High-rate sand: No. 20 silica sand (.45 mm – .55 mm).

– Filter Tank: Molded polymeric.

– Underdrain: 360° self-cleaning slotted laterals, precision installed in ball-joint assembly.

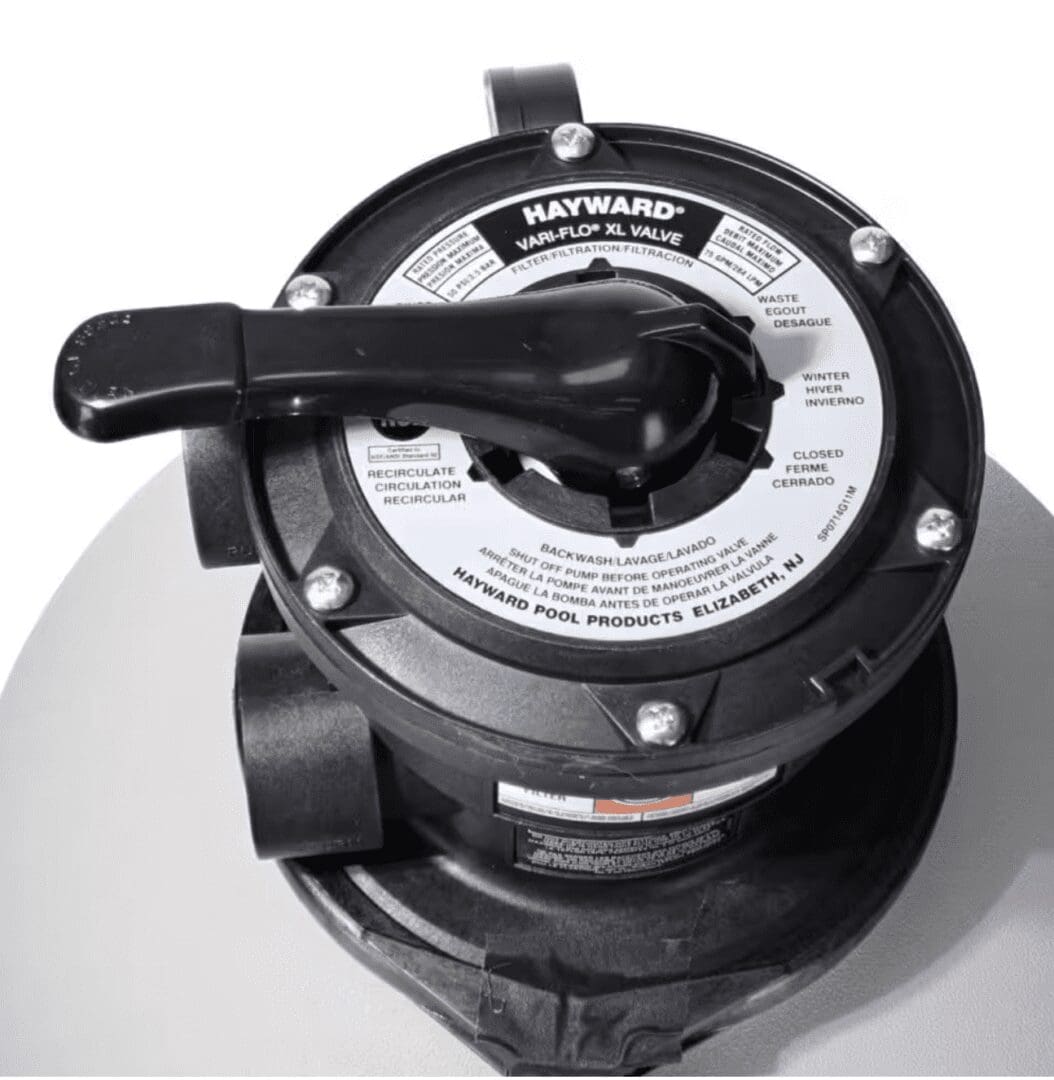

– Control Valve: Seven-position, top-mount VariFlo valve with lever-action handle.

– Valve Fastening: Flange clamp design.

– Pump and Motor: PowerFlo LX or PowerFlo Matrix Series Pump – 115 volts.

– Mounting Base: Injection-molded thermoplastic.

Product Description

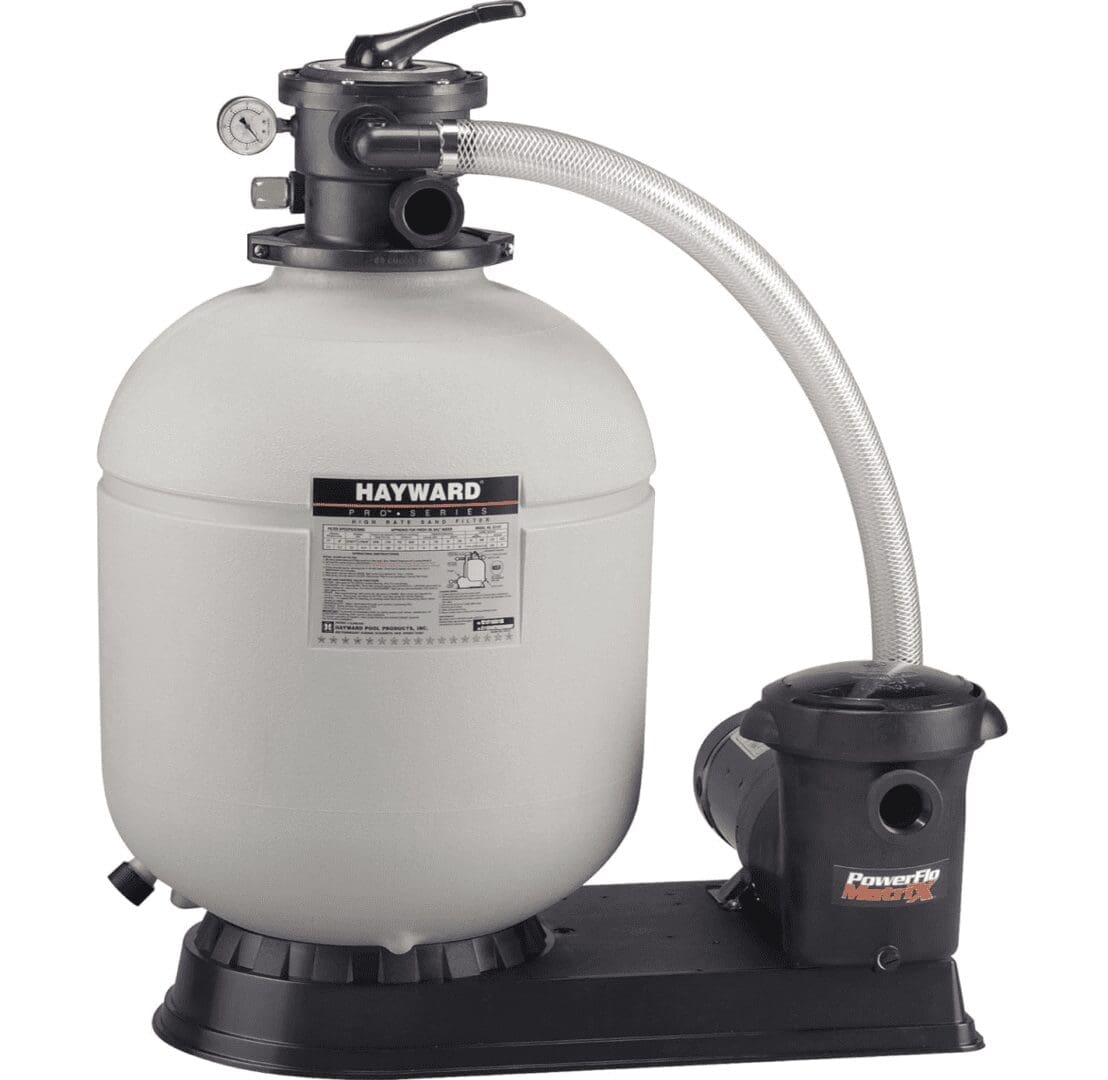

The Hayward ProSeries 18 In. Above-Ground Pool Filter System is designed to pair effortlessly with an above-ground pump to maximize filtration and deliver clearer water than ever before. It utilizes an umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for long-lasting performance. Includes an 18 in. polymeric tank, a 7-position filter control valve and a 1.5 HP PowerFlo Matrix pool pump.
